Engineering case studies

Complex systems, explained through verified results

Selected projects showing how Logic Tech Labs connects hardware, FPGA logic, embedded software, host communication, and laboratory validation. Customer identities are withheld where required, and technical claims are limited to approved project facts.

Discuss a similar project ↗

Selected work

End-to-end engineering in context

Each case study separates verified project evidence from illustrative material so technical teams can evaluate the work clearly.

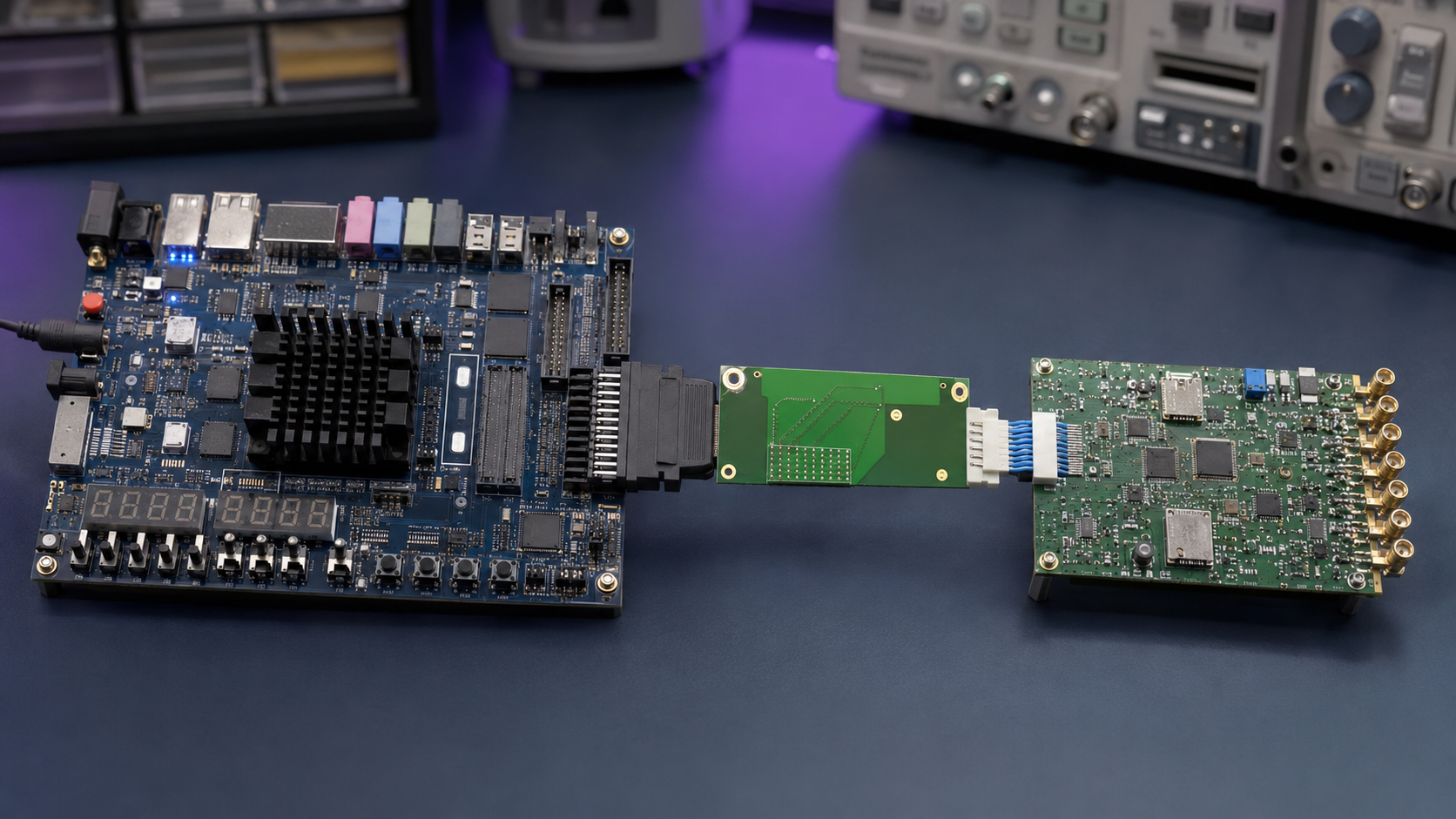

Illustrative FPGA acquisition setup with an FPGA board, interface adapter, and ADC evaluation board — Illustrative system configuration — not a project photograph.

Anonymous case studyDefense and Aerospace

FPGA-Based High-Speed ADC Acquisition Platform

An end-to-end data-acquisition platform that receives all eight serial-LVDS outputs from an AD9222 evaluation board, reconstructs 12-bit samples in FPGA logic, and moves captured data through embedded Linux to a host computer over Ethernet.

8: simultaneous ADC channels
12-bit: reconstructed sample width
65 MSPS: validated per channel

Read the case study
